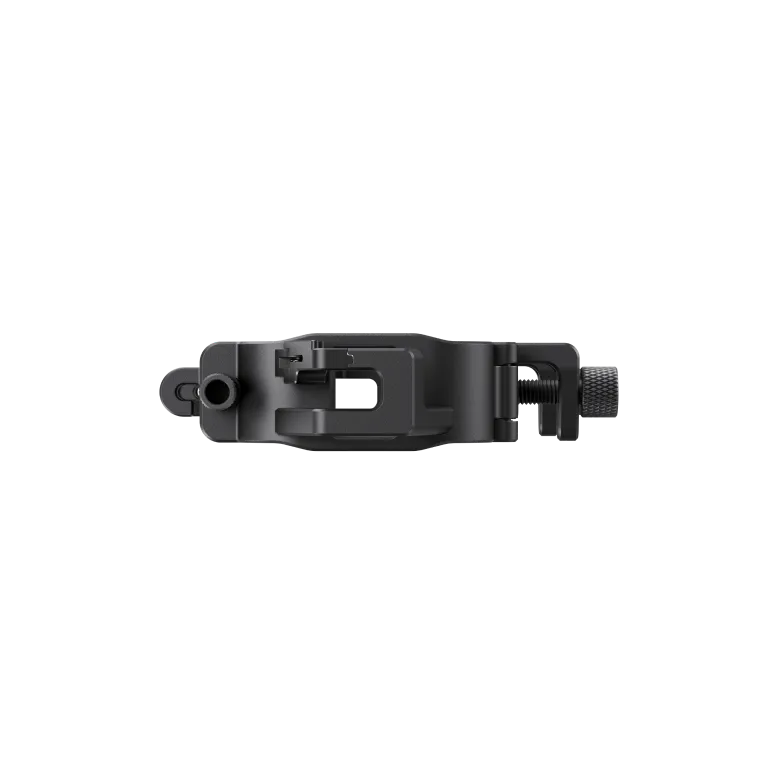

Insta360 X3 Water Sports Rope Mount

Easily attaches to the line for easy filming while kitesurfing or surfing

Horizontal fixation prevents camera rotation for stable, high-quality shooting

Supports installation on strong ropes with a diameter of 1-8 mm

Specifications:

Weight: 74.5g

Dimensions: 16x90x23mm

Package includes:

X3 Water Sports Rope Bracket x 1

Instructions for use:

Install

1. Plug in your camera.

Loosen the top screw, open the bracket (①), and insert the camera as shown below (②). Close the bracket and tighten the top screw to secure it.

2. Fasten the bracket to the kiteboard line.

Kitesurfing Installation

1. Loosen the screws on the side of the bracket.

2. Fasten the bracket to the kiteboard line. Make sure the screws are tight and secure. Do not mount the screw-fastened side onto the safety line.

important

1. Do not install the screw-fixing side onto the safety rope.
For quad kitesurfing rigging, if both middle lines are safety lines, your rigging is not compatible with this accessory

2. For a five-line kitesurfing rigging, one line should be fixed on the screw-on fixing side, while the other two lines (including the safety line) should be fixed on the other side of the mount.

3. The weight of the camera mounted on the kite surfing line may affect the ability to take off again on the water.

Wakeboard Installation

1. Loosen the screws on the side of the bracket. Remove the rope locks at the top and bottom of the bracket.

2. Fasten the bracket to the tow rope as shown. Make sure the rope passes through the top and bottom rope buckles.
Make sure the bracket is securely fastened to the towing rope with the screws.

Note:

1. The diameter of the rope suitable for kitesurfing and water skiing ranges from 1mm to 8mm, and the strength of the rope needs to meet the requirements of these two sports.

2. Since this accessory is used in water, please read the waterproof instructions of the camera carefully before use and make sure the battery lock cover and USB lock cover are closed properly. Strong vibration, impact or pressure on the camera may affect its waterproof performance.

3. For kitesurfing installation, if using a safety rope, please follow the instructions in this manual and make sure the safety rope is not tied to the screw fixing side.

4. For kite surfing installation, the best position of the camera is 20cm~30cm away from the knot. If the two lines are too far apart, it will affect the installation of the bracket.

5. For the installation of the water ski, do not frequently and excessively pull the rope buckle, otherwise it may affect its service life.

6. This accessory is only suitable for Insta360 X3, do not use it with other cameras. When using, please keep the camera lens away from hard objects such as sand to avoid scratching the lens.

7. Please do not DIY with other accessories.
