Insta360 Motorcycle Tail Rod Package Motorcycle U-Bolt Mount

Insta360 Motorcycle Tail Rod Package Motorcycle U-Bolt Mount

Insta360 Motorcycle Tail Rod Package Motorcycle U-Bolt Mount

$319.00

Compatible Models

X5 / X4 / X3

Ace Pro 2/Insta360 Ace Pro/Ace

GO 2

ONE RS (dual-lens/4K) / ONE X2 / ONE R / ONE X

Insta360 Motorcycle Tail Boom Set

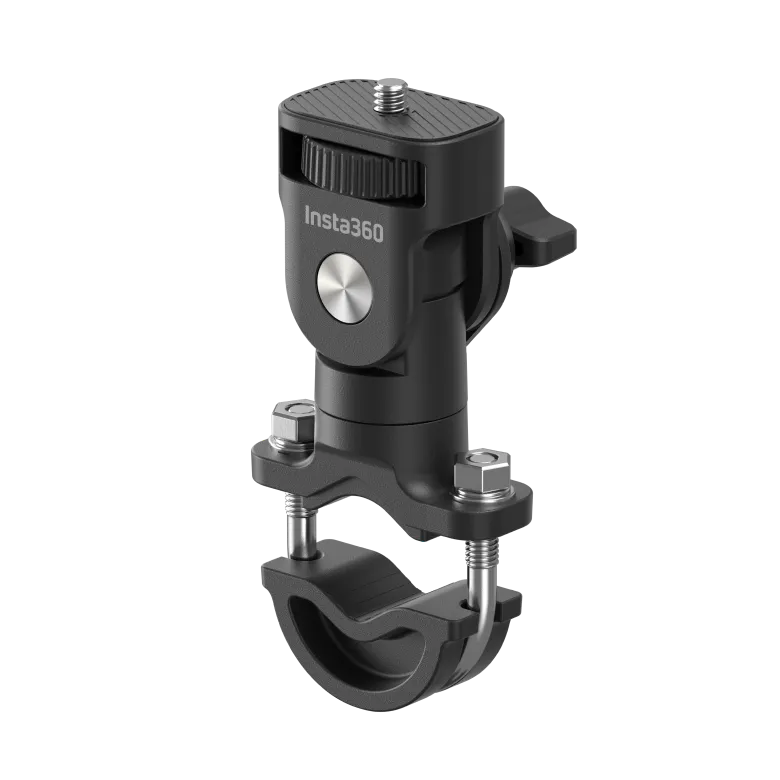

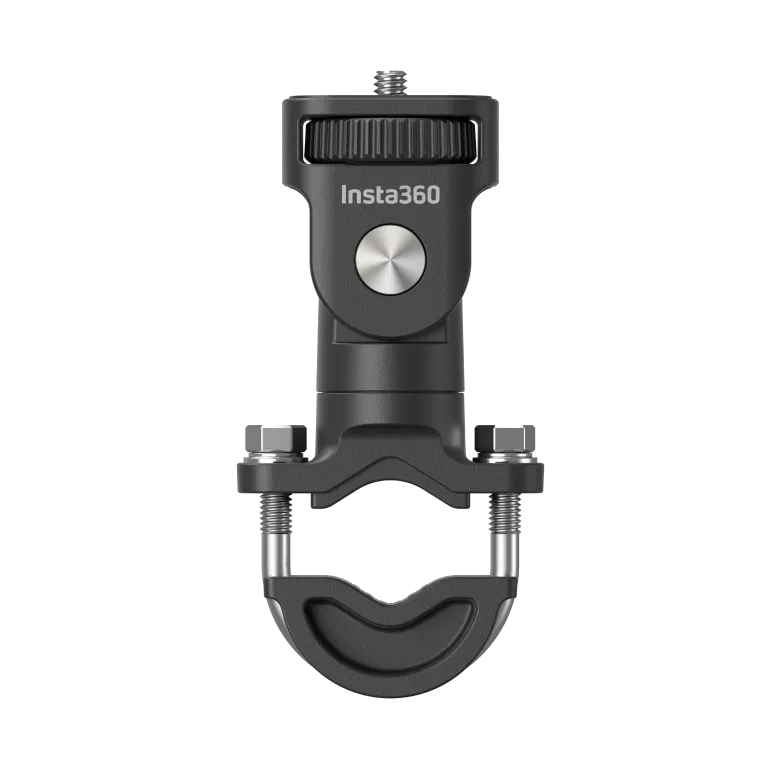

Insta360 Motorcycle U-Bolt Mount

Standard Package

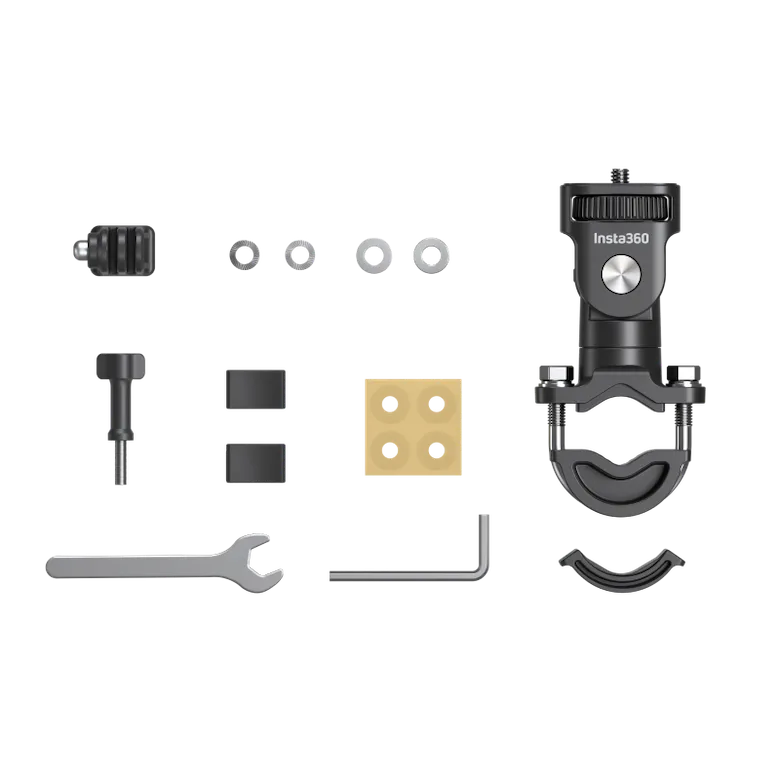

Package includes:

Universal joint x 1
U-bolt x 1
Wrench x 1
Hexagonal wrench x 1
Large spacer x 1
Small spacer x 1
Rubber pad x 2
Washer pair x 2
Thumb screw x 1
1/4" to 3-claw adapter x 1
Anti-slip ring x 4

Upgraded Selfie Stick Set

Package includes:

Universal joint x 1
U-bolt x 1
Wrench x 1
Hexagonal wrench x 1
Large spacer x 1
Small spacer x 1
Rubber pad x 2
Washer pair x 2
Thumb screw x 1
1/4" to 3-claw adapter x 1
Anti-slip ring x 4
Insta360 Sports Invisible Selfie Stick (1 meter long)

New design, third-person shooting in the car is more stable

Suitable for most mainstream motorcycles

Standard 1/4" adapter design, supports Insta360 sports invisible selfie stick

Compatible with GO 2, needs to be used with sports adapter frame

Instructions for use:

Before first use

1. Loosen the universal joint by turning the butterfly nut, then turn the top until the hexagon socket head is visible.

2. Align the bottom of the universal joint with the top of the U-bolt. Using an L-wrench, tighten clockwise until securely fastened.

3. Loosen the top nut of the U-bolt by turning it counterclockwise. Use the appropriate spacer according to the clamping position and your motorcycle, then install the spacer.

4. Peel off the rubber pad and kneader and fix it to the gasket for better friction.

5. Fasten the washer and nut in order. Use a wrench to tighten the nut clockwise.

How to Use U-Bolt Fittings

1. Turn the butterfly nut one full turn counterclockwise to adjust it horizontally 180°.

2. Rotate the butterfly nut counterclockwise two full turns for a 360° vertical rotation.

Specifications:

Material: Aluminum alloy, zinc alloy

Weight: 201g

Dimensions: 96.5x51.5x57mm

Note:

1. Install the gasket inside the U-bolt according to the clamping position and size.

2. Tighten the universal joint securely onto the U-bolt before use.

3. The included nut anti-slip spacer set consists of two spacers. Be careful not to lose these spacers during disassembly, as losing the spacers may cause the nut to loosen under vibration.

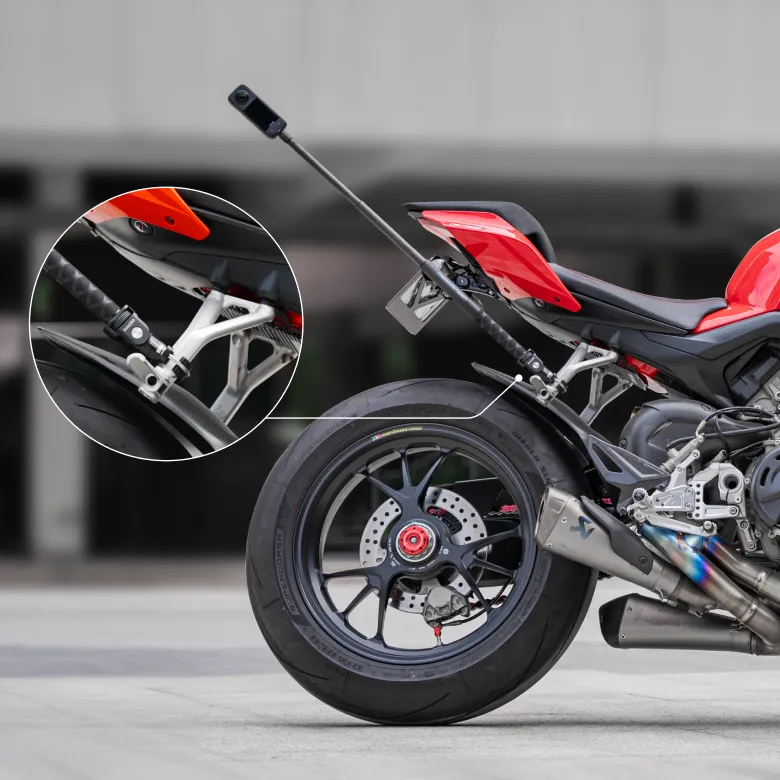

4. U-bolts can be mounted to motorcycle frames, rear step brackets, bumpers and other secure areas. . Always check that the U-bolts are locked in place and there is no rotation or play in the mount after securing.

5. Riding is only recommended on flat roads, with a speed not exceeding 80 km/h (50 mph). Off-road riding is not supported.

6. It is recommended to connect the Insta360 High Strength Invisible Selfie Stick to the 1/4" adapter on the universal joint to ensure that the white stick is firmly installed. Do not connect the white stick to other accessories. Do not force the top of the selfie stick, as excessive torque may damage the universal joint.

7. When the motorcycle is parked outdoors for a long time, remove the accessories to keep it in the best condition.

8. Please use accessories according to the installation instructions in this manual. Do not DIY. Damage caused by not following the instructions is not covered by the Insta360 warranty or replacement service.
